Synergistic Research사는 미국캘리포니아에 위치하고있으며 30년이 넘는 시간동안 하이엔드케이블 시장에서 자리를 확고히 다진 전통의 하이엔드 케이블 제조업체입니다.
케이블업계최초로 꿈의소재라 불리우는 Graphene소재를 케이블에 접목을 시켰으며 백만볼트를 이용한 초고압처리등 현존하는 케이블업체중 가장 과학적이고 체계적인 케이블 제조방법을 제시하고 있습니다.

오래기간 하이엔드 전원장치를 개발해왔던 노하우와
그 어떤 전원장치도 따라올수없는 엄청난 물량투입으로 이시대 진정한 전원장치의 끝판왕이라고 불리울수있는 제품이 탄생했습니다.

SRX PowerCell은 20A 순간적인 피크 전류를 충분히 전송할수있도록

총 133피트에 달하는 6N 순은(99.9999%)으로 구성된 포인트 투 포인트 접점방식으로 제작됩니다.
(들어간 은의 재료비만 해도 엄청납니다)

슈퍼커패시터 용량을 두 배로 늘린 SRX PowerCell의 EM Cell은 엄청난 양의 전기 에너지를 저장하여 전력소모가 많은 대출력의 파워앰프에도 더욱 큰 다이나믹스를 제공합니다.

또한 메인파워코드로는 국내하이엔드 오디오시장에 소개되어 엄청난 성능으로 많은분들께 인정받고있는
SRX XL PowerCord(1.8M,32A) 2개가 기본번들로 제공됩니다(소비자가격 3,600만원)



총 9가지의 색깔변화가 가능하며 이제품에 새롭게 들어간 다양한 기술들은 아래와 같습니다.

워낙 고가의 제품이므로 선주문방식으로만 국내 공급됩니다.
제품에 대한 궁금한점이 있으신분들은 유선상으로 연락 부탁드립니다.

Synergistic Research 한국공식수입원 es오디오
02-499-3627

A Massive Electromagnetic Sledgehammer



The SRX PowerCell delivers a significant increase in electromagnetic conditioning even when compared to the new PowerCell 14. In comparison, the SRX PowerCell’s Electromagnetic Cells, which are the foundational building blocks responsible for line conditioning, are five times larger than those of the PowerCell 14 and boast about 20 times the conditioning surface area of the PowerCell SX!



·         A comprehensive from-the-ground-up redesign of our new EM cell more efficiently filters out contaminants to the signal, resulting in a lower noise floor and better dynamics.



·         Doubling its function as a supercapacitor, the EM Cells in the SRX PowerCell store a massive amount of electrical energy and delivers peak current that surpasses 20A wall circuit, enabling even the most power-hungry amplifiers to sound more dynamic with better leading-edge transients plugged into it.



·         A total of 16 of these immense EM Cells are provided across three separate, isolated banks of of outlets, allowing for the most dedicated number of EM Cells to be available in any PowerCell ever released.

SRX PowerCell is designed to deliver the cleanest, most impactful power to enable your system to sound better than you ever thought possible.



Re-engineered ULF and DC Biasing



ULF, in its most basic principle, is how we ‘reclock’ our music to the Schumann Resonance by passively addressing and filtering out ambient RF and extreme high frequency noise that would otherwise degrade sound. The SRX PowerCell  utilizes the Galileo SX PowerCell’s power supply and ULF Field Generator and improves upon it in the following ways:

·         We implement a reformulated Ultra Low-Frequency RF bias captured from learnings gleaned from our SRX PowerCell and Voodoo streamer/server development programs.

·         The nature of how we bias ULF has dramatically changed.

·         The way we integrate both ULF and DC into EM cells has also changed.

·         The power supply that generates the DC bias to EM cells has been radically evolved.

·         New 24k Gold UEF tuning circuits bring harmonic richness and enhanced musicality.

With these advancements, SR is now able to precisely control the phase points between the frequencies used for bias.  When selecting between the two biases on the SRX PowerCell, they reflect SR’s most current understanding of ULF treatment and will deliver a more favorable, welcoming response to your music.



Specifications

 Wiring

• All 12 awg 99.9999% pure silver point-to-point discrete wiring

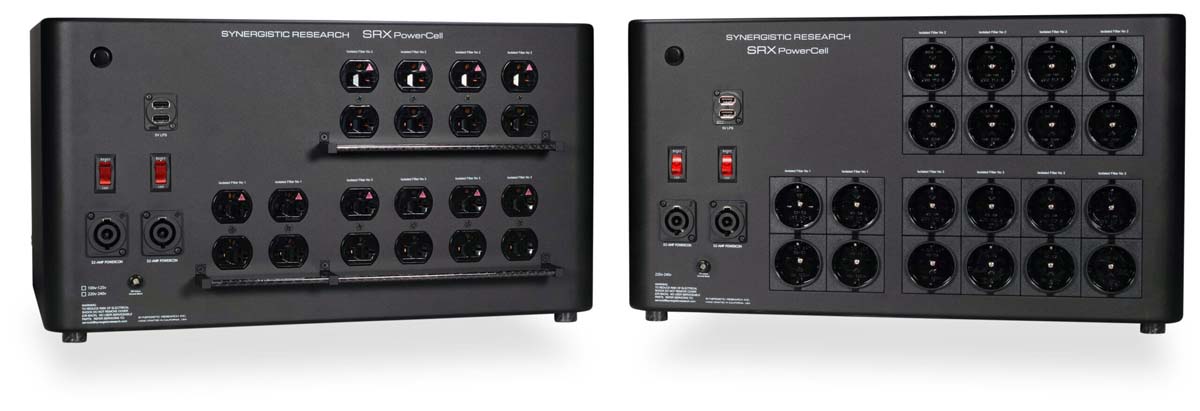

Connector Output US:

• 20 UEF Pink Outlets

Connector Output International (EU/AU/UK):

• 20 UEF Pink Outlets

UEF:

• Graphene treatment throughout unit
• Internal “Active” Gen 2 SRX Linear power supply for biasing EM Cells
• Dual Channel, Dual Setting SRX ULF (Ultra-low frequency) Generator applied to each individual electromagnetic cell to bias AC to the Earth’s Schumann Resonance for a dramatic drop in a system’s noise floor.
• 2 each SR Power Transformers
• 8 each SR Quantum Capacitors in EM Cell power supply and ULF field generator
• Machined Aluminum and Carbon Fiber chassis
• 16 New 1st Gen, SRX XL Folded EM Cells topology acts like a ‘Super Capacitor’ to increase peak current on demand allowing components to draw more current than when connected directly to the wall for added dynamic headroom

Internal Active UEF EM Horizontal Plane Cell area:

• 17,340 square centimeters
• 16 x Internal 1st Gen, SRX XL EM Folded Carbon Fiber Cells
• 2 x Internal 1st Gen, SRX XL EM flat Cells

Connector Input:

• 2 each Neutrik 32 amp PowerCon
• 3 Isolated Output Banks; can be used to isolate high current, analog and digital components

99.995% Pure Silver Ground Strap:

• 96 square centimeters

Weight and Dimensions:

• Height 10.75″ (with CF feet) x Width 19″ x Depth 14.2″ (15.6″ with CF shelf - U.S. version only)
• 64 lbs.

Voltage and current Rating:

• • Input rating US: 20amp/125v
  • Input Rating International (EU/AU/UK): 16amp/250v
  • US Version: Rating is limited by the US Outlet rating of 20amp/125v
  • International(EU/AU/UK) Version: Rating is predicated upon the Schuko Outlet rating of 16amp/250v
