기존 한국하이엔드오디오시장에서 선풍적인 인기를 끌었던 Grounding Block의 업그레이드버젼인 Active Grounding Block입니다.

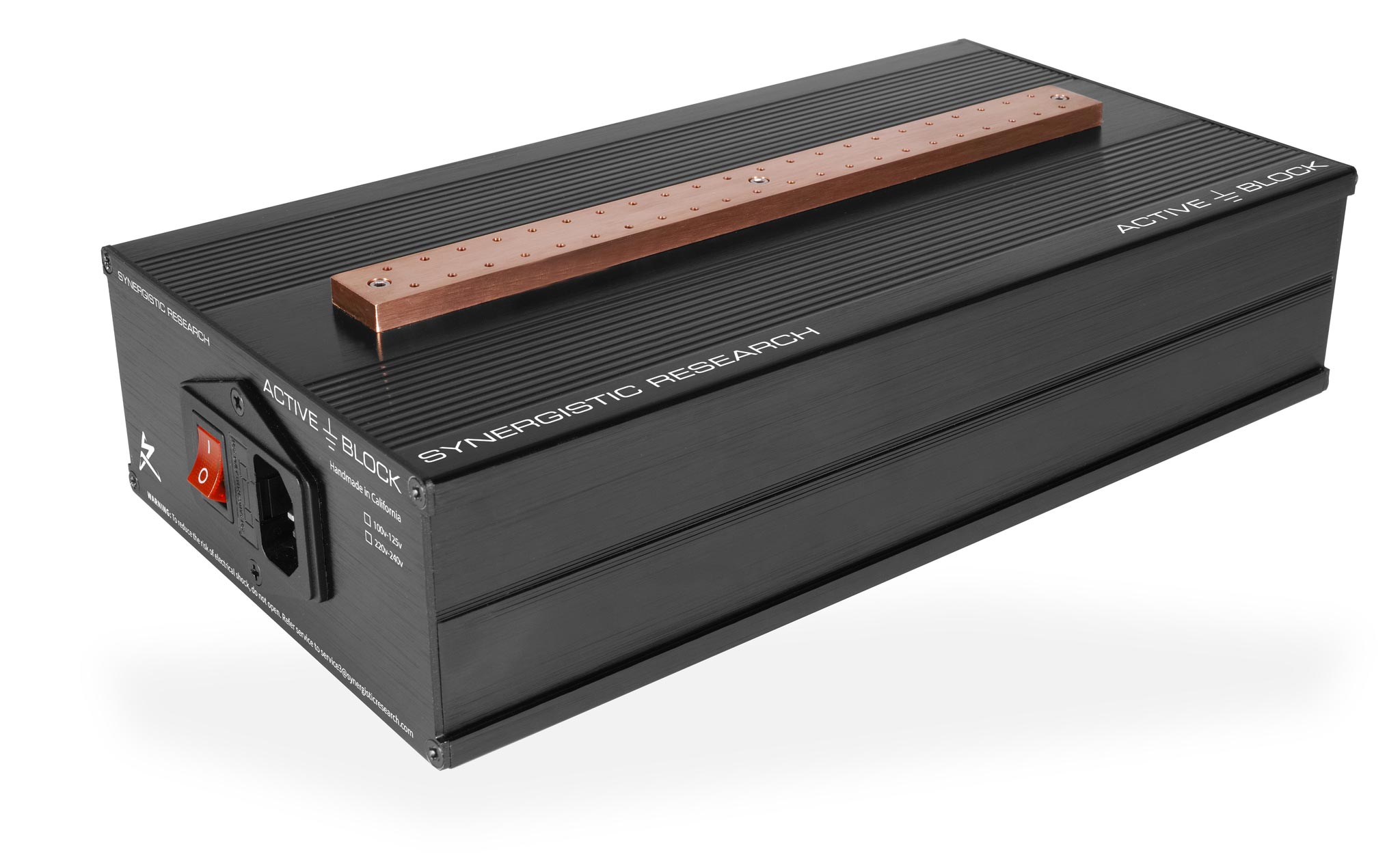

Active Ground Block SE
Aircraft Aluminum Chassis ==>항공알류미늄바디
Solid Copper Grounding Bar ==> 순동으로 만들어진 그라운딩바
UEF Ground Filter x 3==> 시너지스틱리서치사의 전매특허인 UEF Ground Filter를 기존 Ground Block보다 3배더적용
44 each 2mm ground ports==> 44개의 그라운드포트
1,000,000 volt Quantum Treatment==>시너지스틱리서치사의 전매특허인 백만볼트초고압처리
2nd generation Internal ULF (Ultra-low frequency)==> 2세대내부 ULF필터(슈만레조네이터를 이용
기기의 고주파노이즈를 극저주파로 리클라킹함으로써 기기의 노이즈플로어를 드라마틱하게 줄임
99.995% Pure silver ground strap==> 99.995% 순은선으로 그라운드선연결
Atmosphere Active Ground Block Power Cable
with Galileo UEF Tuning Modules ($1995 MSRP) ==> Atmosphere LV2베이스의 파워코드에 Galileo케이블에만 들어가는 UEF Tuning Modules을 적용시킴
Included UEF Black Fuse ($129.95 MSRP) ==> 내부Fuse를 전세계최강의 휴즈인 BlackFuse적용함
Internal biasing Active EM Cell ==>내부에 액티브 EM Cell을 적용 EMI/RF노이즈제거
등 시너지스틱리서치사가 가지고있는 모든 노하우가 접목된 Active Ground Block이며
단순히 가장접지를 만들어주는 기존타사의 그라운드장치들과 비교할수없는 퍼포먼스를 가지고있는 Ground 장치입니다..
SE버젼에는
260만원상당의 Atmosphere Active GroundBlock power cable
(Galileo UEF케이블에만 들어가는 Galileo UEF Tunning Module(Silver/Gold)이 포함)
Blackfuse업그레이드
내부에 Active electormagnetic Cell이 적용되어있습니다..
Applications(적용사례)
- Synergistic Research Galileo UEF and Atmosphere Cables(SR 케이블들)
- Synergistic Research Tranquility Bases(SR Tranquility Base하이엔드 받침대)
- Synergistic Research Atmospheres(SR Atmosphere 룸튜닝장치)
- Turntables – Standard or Small Spade Connect to Ground Post on Turntable
(턴테이블의 그라운드 포스트에 스페이드로고정)
- Phono-stage - Standard or Small Spade Connect to Ground Post
(포노스테이지의 그라운드 포스트에 스페이드로고정)
- Digital to Analog Converters (DACs) – Connect to spare Digital Input, Output or Chassis Ground
(DAC의 여분의 디지털인풋이나 아웃풋 또는 샷시에고정)
- Reel to Reel Tape - Connect to spare Analog Input, Output or Chassis Ground
(릴테이프의 여분의 아날로그 인풋,아웃풋 또는 샷시에고정)
- Pre-Amplifiers – Connect to spare Analog Input, Output or Chassis Ground
(프리앰프의 여분의 아날로그 인풋,아웃풋 또는 샷시에고정)
- Power Amplifiers – Connect to spare Analog Input, Output or Chassis Ground.
(파워앰프의 여분의 아날로그 인풋,아웃풋 또는 샷시에고정)
- USB Devices – Connect to spare USB Input, Output or Chassis Ground
(USB디바이스의 여분의 USB인풋,아웃풋또는 샷시에 고정)
- Audio Computers - 3.5mm Headphone Jack(3.5mm 헤드폰짹에 고정)
- Any Component with an active circuit inside – Connect to spare Input, Output or Chassis Ground
Synergistic Research사의 GroundingBlock은 타사의 패시브그라운드 제품들과는 다른컨셉의 그라운딩장치입니다..
타사의 그라운딩장치들이 가상의 그라운딩포인트를 잡아주는것으로 그라운딩효과를 보는것이라면 시너지스틱리서치사의 그라운딩 장치들은 기기외부에 존재하는 잔류전류를 스타그라운딩방식으로 모아서 외부로 방출해주는형태의 그라운딩장치이기때문에
타사 그라운딩제품들과 효과와 체감성능이 틀리게 작동되며 특히 접지가 잘되어있는 설치환경에서 더욱 성능이 극대화되는 제품입니다.(반대급부로 이제품은 접지선이 연결되어있지않은 오디오환경에서는 효과가 아주 미비합니다.. 접지가 연결되어있지않은 환경에서 오디오를 하시는분들이라면 이제품을 권해드리고 싶지 않습니다)
이점때문에 이제품의 메인접지선은 어떠한 전원장치와도 연결하지 말고 접지선이 다이렉트로 연결되는 벽체에 연결하라고 메뉴얼상에 표시되어있으며 실제테스트해보니 어떤 고가의 전원장치보다도 벽체에 다이렉트로 연결시 이제품의 성능은 극대화됩니다..
그라운딩블럭의 음악적특성은
각기기외부에 존재하는 잔류전류를 제거함 ==>
노이즈플로어의 제거로인한 배경의 정숙성이 극도로 증가되며
사운드스테이지의 높이와 깊이 넓이의 증가,포커싱,음악적인 뉘앙스의 향상,해상력증가등 전반적인 시스템의 모든부분에서 소리의 향상을 볼수있는 제품입니다.
특히 시스템소리가 뭉치거나 현재 나오는 소리가 너무 포워드하게 나오는 시스템에서 이제품의 성능은 극대화됩니다.
이전 그라운딩블럭과 Active그라운딩블럭과의 차이는 이러한특성들이 더욱 두두러집니다
오디오 악세사리의 경우 장점과 단점이 극명하게 드러나는편인데 Synergistic Research 사의 악세사리중 제 개인적으로는 가장 장점이 뛰어나게 작용하는 악세사리라고 평하고싶습니다..
그라운딩블럭과 Active그라운딩블럭의 차이를 직접 들어보고싶으신분들은 언제라도 저희 es청음실을 방문하시면 그효과를 체감하실수있게 해드리겠습니다..
데모를 원하시는분들은 저희에게 연락주시면 데모가능여부를 안내해드리도록 하겠습니다..
Synergistic Research 한국공식수입원
ES오디오 02-499-3627
http://www.esaudio.co.kr
Active Grounding Block과 다른기기들과 연결시 사용되는
HD그라운드케이블(RCA,XLR,Lan,USB,Banana,Spade)
Basic그라운드케이블(RCA,XLR,USB,Ethernet)
들은
관련상품란을 참고하세요
The heart of your system.
The New Active Ground Block takes the award winning UEF Ground Filter from our original SR Ground Block and adds an active ULF Field Generator, and on the SE model, a dedicated Active EM Cell as found in SR PowerCell line conditioners to supercharge the performance of every component in your system including Synergistic Research cables equipped with external grounding technology. Benefits include a noticeable increase in deep bass power and weight, a more holographic sound field, smoother high frequencies with greater extension and ‘air’, a more present and layered mid-range, increased tonal density with an apparent increase in resolution; it’s like going from a standard resolution Redbook file to Double DSD, the improvement is that dramatic. Nearly every aspect of system performance is transformed over the original; in fact, the difference between the new Active Ground Block and our original SR Ground Block is greater than the difference between the original Ground Block and no ground filter at all!
How it works: It all starts with 44 Star Ground Points to reduce component to component ground inductance. That’s 44 ground connections to the original’s 18. You can ground your entire system including all components, a full loom of SR cable shields, and even equipment racks, computer hard drives, absolutely everything in your system can be grounded to one SR Active Ground Block. Filtration is handled by a UEF Ground Filter that’s 3 times the size of the original’s UEF Ground Filter and this translates into 3 times the performance of the passive ground filter alone. To this we add an Active ULF Field generator as found in our PowerCell 12 UEF which re-clocks high-frequency ground noise to the Earth’s Schumann resonance as well as noise generated inside connected components at the circuit level, so each connected component’s performance is fundamentally transformed at the source. And the Active Ground Filter is the only ground filter in the world to use such a filter mechanism for a performance unlike anything you’ve ever experienced. Stepping up to the Active Ground Block SE replaces the standard model’s passive Quantum Black Power Cord with a specially modified Atmosphere Level 2 Active power cord equipped with Galileo UEF Quantum Gold and Silver Filters that give you two distinctive sonic options to the overall sound of your system. With the included Galileo UEF filters you perfectly tailor the sound of the Active Ground Block SE to match your system, or leave the Galileo UEF Filters disconnected, the choice is yours. Lastly, the SE version has an Active EM Cell similar to the EM Cells found in our PowerCell 8 power conditioners to actively remove noise from ground for even blacker backgrounds, with improved dynamics, and finesse.
Applications
- Synergistic Research Galileo UEF and Atmosphere Cables
- Synergistic Research Tranquility Bases
- Synergistic Research Atmospheres
- Turntables – Standard or Small Spade Connect to Ground Post on Turntable
- Phono-stage - Standard or Small Spade Connect to Ground Post
- Digital to Analog Converters (DACs) – Connect to spare Digital Input, Output or Chassis Ground
- Reel to Reel Tape - Connect to spare Analog Input, Output or Chassis Ground
- Pre-Amplifiers – Connect to spare Analog Input, Output or Chassis Ground
- Power Amplifiers – Connect to spare Analog Input, Output or Chassis Ground.
- USB Devices – Connect to spare USB Input, Output or Chassis Ground
- Audio Computers - 3.5mm Headphone Jack
- Any Component with an active circuit inside – Connect to spare Input, Output or Chassis Ground
Active Ground Block Specifications:
-
-
- Construction: Aircraft Aluminum
- Dimensions: Height 3″ x Width 10.75″ x Depth 6″
- Weight: 5.5 lbs.
- Internal Active UEF
- Connector Input: 1 each 15 amp IEC
- 99.995% Pure Silver Ground Strap: 52 square centimeters
- SR Quantum Capacitor
- Point-to-point wiring
- Silver Solder 4%
- Hand Built Time: 2.5 hours
- Quantum Tunneling: Standard Level 2
- 5 Day Burn In: 2 Step Process
Voltage and current Rating:
-
-
- Input rating US: 15amp/125v
- Input Rating International (EU/AU/UK): 16amp/250v
Connector Input :
UEF:
-
-
- Graphene treatment throughout unit
- Internal “Active” power supply for biasing EM Cells
- 2nd generation Internal ULF (Ultra-low frequency) Generator to bias AC to the Earth’s Schumann Resonance for a dramatic drop in a system’s noise floor
- 1 each SR Power Transformers
- 1 each SR Quantum Capacitor in EM Cell power supply and ULF field generator
Connector Input:
-
-
- 1 each 15 amp IEC
- 1 each On/Off switch
- 1 each SR Black 1.6A Fuse
99.995% Pure Silver
Available connections for other SR products with SR Ground Plane Technology:
- Synergistic Research Atmosphere: Acoustic Wave Generator
- Synergistic Research FEQ: Frequency Equalizer
- Synergistic Research Tranquility Base Products
Optional High-Def connectivity ground cables are available for the following applications:
- Turntables: Connect to Ground Plug on Turntable
- Digital to Analog Converters (DACs): Connect to spare Digital Input, Output or Chassis Ground
- Pre-Amplifiers: Connect to spare Analog Input, Output or Chassis Ground
- Power Amplifiers: Connect to spare Analog Input, Output or Chassis Ground.
- USB Devices: Connect to spare USB Input, Output or Chassis Ground
- Any Component with an active circuit inside: Connect to spare Input, Output or Chassis Ground

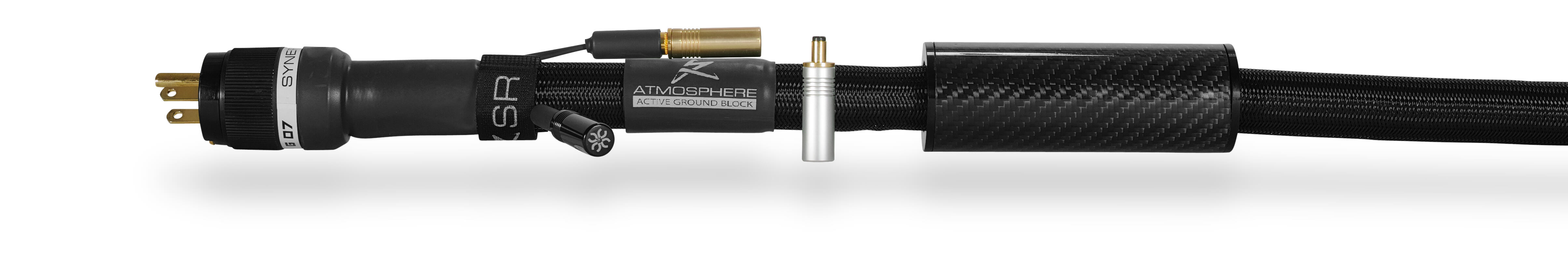

Atmosphere Active Ground Block power cable specifications:
3 each 12 awg. Copper Matrix Alloy:
- Dielectric: Modified PE
- Shielding: Braided Ground Plane Technology
- Geometry: 2 channel
1 each 4th Gen-Tricon:
- Silver Copper Matrix: Mono-crystal conductors with a separate ground conductor from shield
- Dielectric: PTFE
- Shielding: Ground Plane Technology
- Geometry: Tri-axial
- Listened for signal direction before build
1 each Silver Air String:
- Silver Air Strings: 99.9999% pure mono-crystal Silver conductor
- Dielectric: PTFE Air (sealed)
- Shielding: Ground Plane Technology
- Handmade in our California factory
1 each Tungsten Air String:
- Silver Air Strings: 99.99% pure mono-crystal Tungsten conductor
- Dielectric: PTFE Air (sealed)
- Shielding: Ground Plane Technology
- Handmade in our California factory
1 each Active Shielding UEF Cell:
- Swiss-made DC bias Power Supply
- UEF: Graphene treated pcb
- SR Quantum Capacitors
- Dielectric: PTFE
- Shielding: Ground Plane Technology
- Housing: Carbon Fiber Cylinder
1 each Red Active Module:
- Optional for lowest noise floor, completes Active bias circuit
Build Notes:
- 26 point-to-point hand soldered connections
- Atmsophere UEF 3 Teatment: 2 different UEF coatings with Graphene are applied to Active S Cell, connectors and cabling and ground significantly reducing the noise floor and allowing a purer signal to transfer with less grain providing more warmth and detail. The conductors and ground plane and UEF Cell also benefit from dampening effect that UEF provides
- 1 Termination for Atmosphere Active Tuning Module (Red)
- Silver Solder: 4%
- Hand build time: 2.5 hours
- Quantum Tunneling: Before the Active power supply is incorporated all connections and cabling are treated with 1,000,000 volts of electricity at specific frequencies and pulse modulations, creating a canal in the conductor material and contact points at the molecular level that lets electrons to flow more freely. This allows the “Active Shielding” to work more efficiently yielding the maximum amount of low level information through the conductors and provides for the higher degree of realistic musical performance
- 5 day Burn-in: 2 step process
- Handmade in our California factory
|
|
|
 |
|
|
|
