더이상 Seas Exotic제품을 국내 공급하지 않기로 결정됨에 따라서 마지막 남은 재고 소진합니다
2개 한조 가격이며 새제품입니다
Seas사의 60년 제조노하우가 모두 들어간 최상위 Exotic라인입니다
단가의 상승으로 인해 요즘은 거의 사용하지않는 알리코마그넷으로 제작이 되었으며
파피루스 섬유로 제조되어진 페이퍼콘지,특별하게 설계된 고무엣지,특허를 받은 스파이더형태의 댐퍼,나무재질의 페이즈 플러그,96db에 이르는 감도등 이전 스피커에서는 찾아볼수 없는 씨어스사만의 독창적인 제조노하우가 들어가있는 하이엔드 미드우퍼입니다..
매디사운드 판매가격 $990.7 입니다

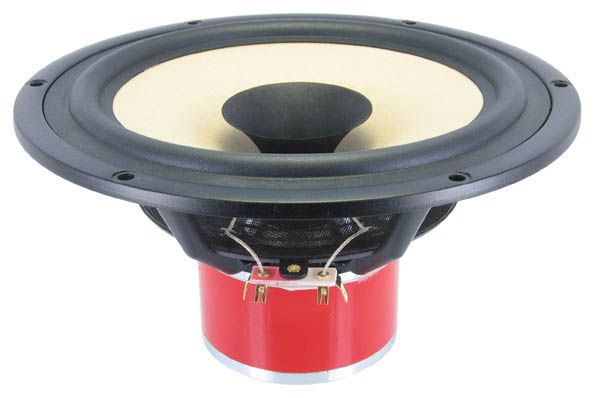

SEAS Exotic F8 X1-04, 8" Woofer - Alnico Magnet
씨어스 엑조틱 F8 8인치 풀레인지우퍼- 알리코 마그넷
| X1-08 EXOTIC F8 |
 |
|
The Exotic F8 is a full range 8-inch driver designed for smooth, wide frequency response, high sensitivity, and low distortion.
The special paper cone is embedded with papyrus fibers to optimize stiffness and damping. An optimally matched whizzer cone extends high frequency response beyond 10kHz.
A special foam rubber surround reduces mass by 40% compared with conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties.
A totally new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally created by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs.
A high temperature copper voice coil is wound on a rigid, non-conductive glass fibre former.
The magnet system uses an Alnico V ring magnet for high sensitivity, excellent stability, and low distortion. A copper cap on the pole piece, combined with an under hung voice coil reduces non-linear distortion to a minimum.
New H2 lead-out wires eliminate noise due to roping and resonances. |
|
 |
| |
 |
|
 Download Datasheet Exotic F8
Download Application Note
Download rewiev from Klang+Ton |
|
| |
|
Frequency response |
|
Dimensions |
 |
|
 |
|
Specifications |
|
| |
X1-04 EXOTIC F8 |
|
|
The Exotic F8 is a full range 8-inch driver designed for smooth, wide frequency response, high sensitivity, and low distortion.
The special paper cone is embedded with papyrus fibers to optimize stiffness and damping. An optimally matched whizzer cone extends high frequency response beyond 10kHz.
A special foam rubber surround reduces mass by 40% compared with conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties.
A totally new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally created by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs.
A high temperature copper voice coil is wound on a rigid, non-conductive glass fibre former.
The magnet system uses an Alnico V ring magnet for high sensitivity, excellent stability, and low distortion. A copper cap on the pole piece, combined with an under hung voice coil reduces non-linear distortion to a minimum.
New H2 lead-out wires eliminate noise due to roping and resonances. |
|
|
| |
 |
|
Download Datasheet Exotic F8
Download Application Note |
|
| |
|
Frequency response |
|
Dimensions |
 |
|
 |
|
Specifications |
|
|
| |
| |
|
|
 |
|
|
|
