BerkeleyAudioDesign의 전신인 퍼시픽 마이크로소닉스는 HDCD를 개발한 업체로, 프로용 A/D(Analog-to-Digital)컨버터와 마스터링 스튜디오에서 사용하는 HDCD 인코더를 만들었으며 프로용 장비로는 최고의 위치에 있었던 디지털기술력에서는 전세계최고의 회사였습니다..
이회사의 창립자이자 엔지니어였던 마이클 리터(Michael Ritter)가 여러가지 사정으로 인해 새롭게 창립한 회사가 버클리오디오이며
이회사가 가지고있는 세계최고수준의 디지털 전문기술과 초하이엔드 측정장비($100,000 정도의 테스트 장비, 얼라인먼트를 위한 $100,000 정도의 재생 기기)들을 가지고
음질에 악영향을 미치는 어떠한 것도 타협하지 않고 구현이 가능한 최고의 음질을 재생하는 제품을 만드는 데에 집중해서 탄생된 제품들이 버클리오디오디자인제품들입니다..
Absolute Sound의 편집장인 Robert Harley씨와의 Alpha DAC Reference Series 2 제품에 대한 인터뷰내용보러가기 ==>
http://www.esaudio.co.kr/menu/customer-index.php?mode=view&bi=7&table=joo_board_7&cP=1&uid=85

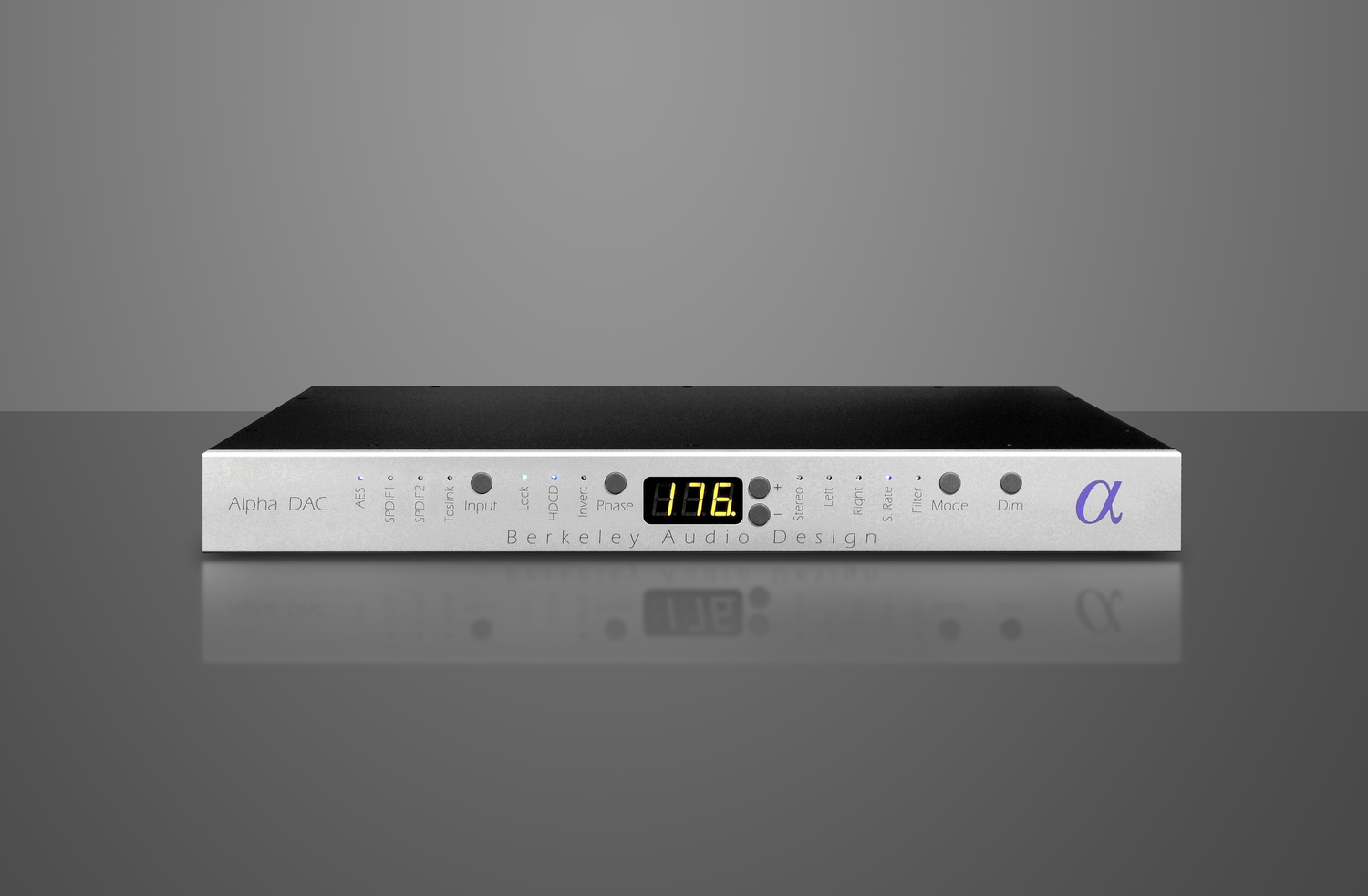

Product Highlights
- The Alpha DAC Series 2 employs new clocking and isolation technologies that provide enhanced imaging precision, timbrel purity and resolution.
- Unequaled interpolation technology up-samples 44.1kHz CD’s to provide almost 176.4kHz quality and produces superb fidelity at all sampling rates from 32kHz to 192kHz
- IR remote control of all functions including volume and balance allows direct connection to power amplifiers
- Advanced input signal jitter rejection
- Input selects AES, SPDIF1, SPDIF2 or Toslink inputs
- Lock LED indicates input signal lock
- HDCD LED indicates HDCD code detected
- Phase sets absolute phase
- Invert LED indicates absolute phase inverted
- 3 digit LED display of Stereo/L/R attenuation, Sampling Rate and Filter type
- ± controls set attenuation level and select Filter type
- Mode selects Stereo/L/R attenuation, Sampling Rate and Filter type display modes
- Dim selects multiple display brightness levels
Specifications
- Input sampling rate: 32kHz to 192kHz
- Input word length: 24-bit
- Two channel analog stereo outputs: XLR balanced and RCA unbalanced
- Digital Inputs: AES - Single XLR 110Ω, SPDIF1 - BNC 75Ω, SPDIF2 - BNC 75Ω, Toslink - Optical
- HDCD decoding detects 16-bit flag at 44.1kHz or 24-bit flag at all sampling rates
- Multiple digital filter options
- Balanced analog output level: +18dBu maximum, +12dBu or lower recommended
- Unbalanced analog output level: 3.25Vrms maximum, 2Vrms or lower recommended
- Digital attenuation and balance control: 0.1dB/step with .05dB/step trim, 60dB range
- Frequency response at ≥ 88.2kHz sampling rates: ± 0.1dB from < 0.1Hz to 35 kHz, - 3dB at 59kHz
- for 176.4kHz and 192kHz sampling rates
- Distortion at recommended levels: all products ≤ -120dBFS
- THD+N at maximum level: < -110dBFS
- Firmware field upgradeable through signal inputs
- Enclosure dimensions: 1.75”H X 16.5”W x 10.4”D, 19” rack mount option
- Mains power: 100/120/240VAC, 50/60Hz, IEC power input connector
- Power consumption: 25W, designed for continuous operation
|
|
|
 |
|
|
|
