초하이엔드 파워컨디셔너 제조업체인 GigaWatt의 PowerStrip의 최상위버젼 PF-2 EVO입니다..

이회사제품은 기본적으로 이회사에서 생산되는 파워코드가 번들형태로 들어가 있습니다.

기본 내장되는 파워코드의 경우 PowerSync이며 파워코드옵션에서 업그레이드가 가능합니다.

PF-2 EVO(PowerSync Plus)의 경우

15A IEC커넥터로 메인 커넥터 연결이 되며
38만원 제품인 PowerSync (1.5M) 기본내장되어 있습니다..




유럽하이엔드 오디오시장에서 GigaWatt제품중 가장 인기를 많이 끌고있는 모델이며
GigaWatt제품중 가격대성능비로는 최고라고 손꼽고 싶은 제품입니다

하이엔드 오디오 전원장치의 새역사를 쓰고있는 GagaWatt사의 PF-2입니다..
내부 만듬새,물량투입,소리만듬새등 상당히 잘만들어진 멀티탭입니다..

Gigawatt PF-2 멀티탭의 특징

•돋보이는 탄탄한 외관 설계(표면 EMI 차폐코팅제)
•Gigawatt 상급 모델에서 사용된 전기분배 솔루션을 그대로 적용
•30㎟의 단면적을 가진 캐소드 구리로 제작된 바(Bar) 채용
•음질 중심의 보호회로 설계(UltraMov 소자를 이용한 다단 보호회로 설계)
•극저온의 효과와 영속성을 그대로 PF-1에 적용(Gigawatt의 극저온처리기술)
•탁월한 전기공급으로 다이내믹스와 악기의 색채감이 저하되는 현상을 방지

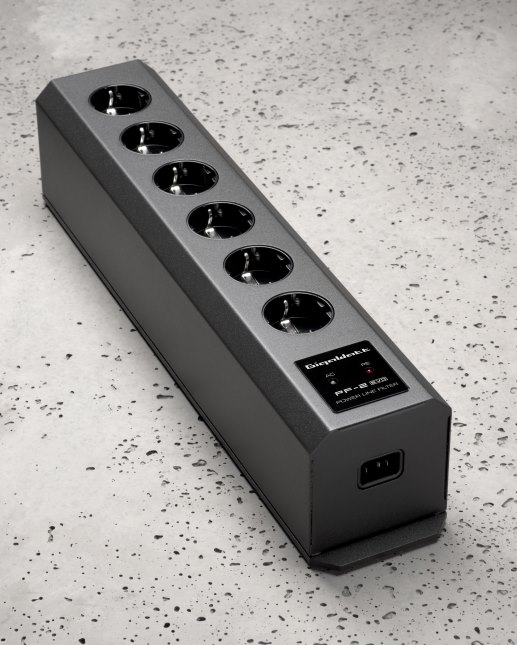

PF-2 EVO is the improved version of the advanced filtering power strip designed to power and protect Hi-Fi audio and video systems.

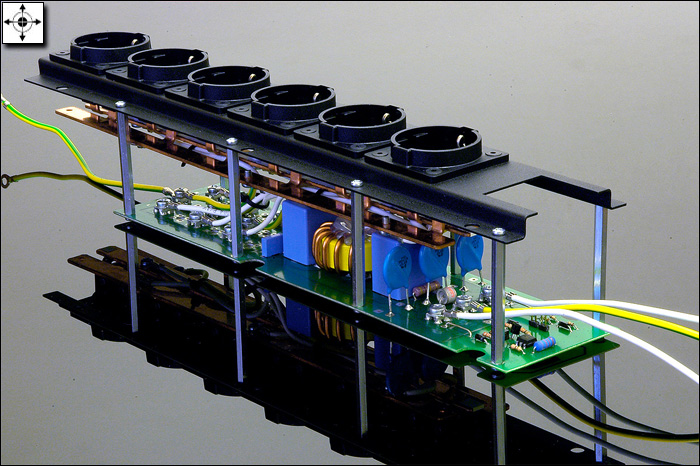

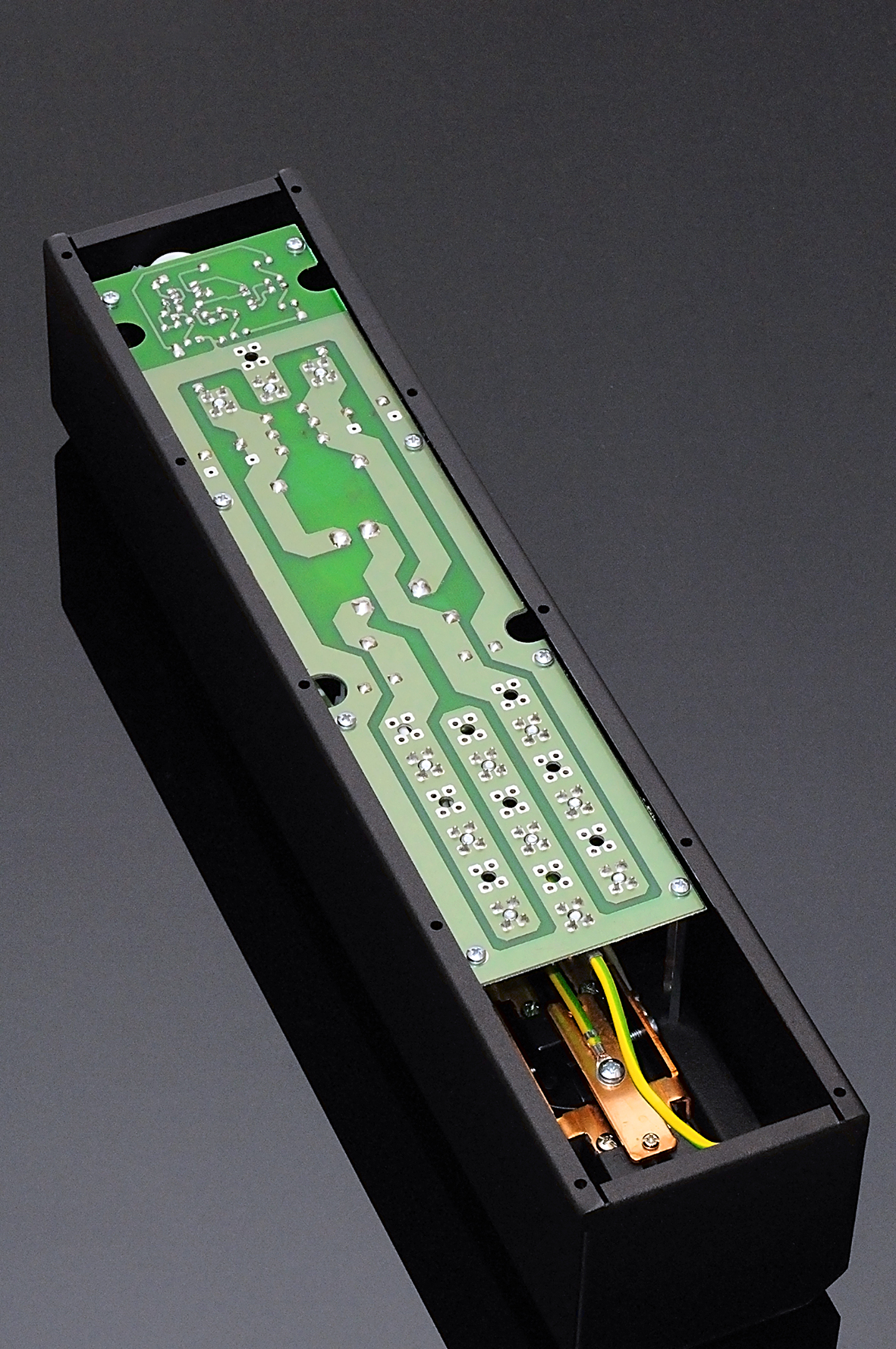

The strip is made using high quality components. The distortion is filtered in a RLC filtering block. It is built using metalized polyester capacitors with low inductance and an IP (Iron Powder) filtering core. The EVO version uses the highest quality capacitors manufactured by Miflex according to Gigawatt specifications. All components of the filters, are mounted with silver solder on a massive, double-sided printed circuit board with very large cross-sections.

The strip doesn’t have typically protective elements, such as fuses or thermal fuses, which throttling the free flow of current to the protected circuits have a negative effect on the sound.. Protection against overvoltage and power surges is guaranteed by a multi-stage protection circuit, composed of plasma sparks and new generation of UltraMOV varistors. Those elements, working together with a well designed, modern power grid, warrant a complex protection against overcurrent and overvoltage.

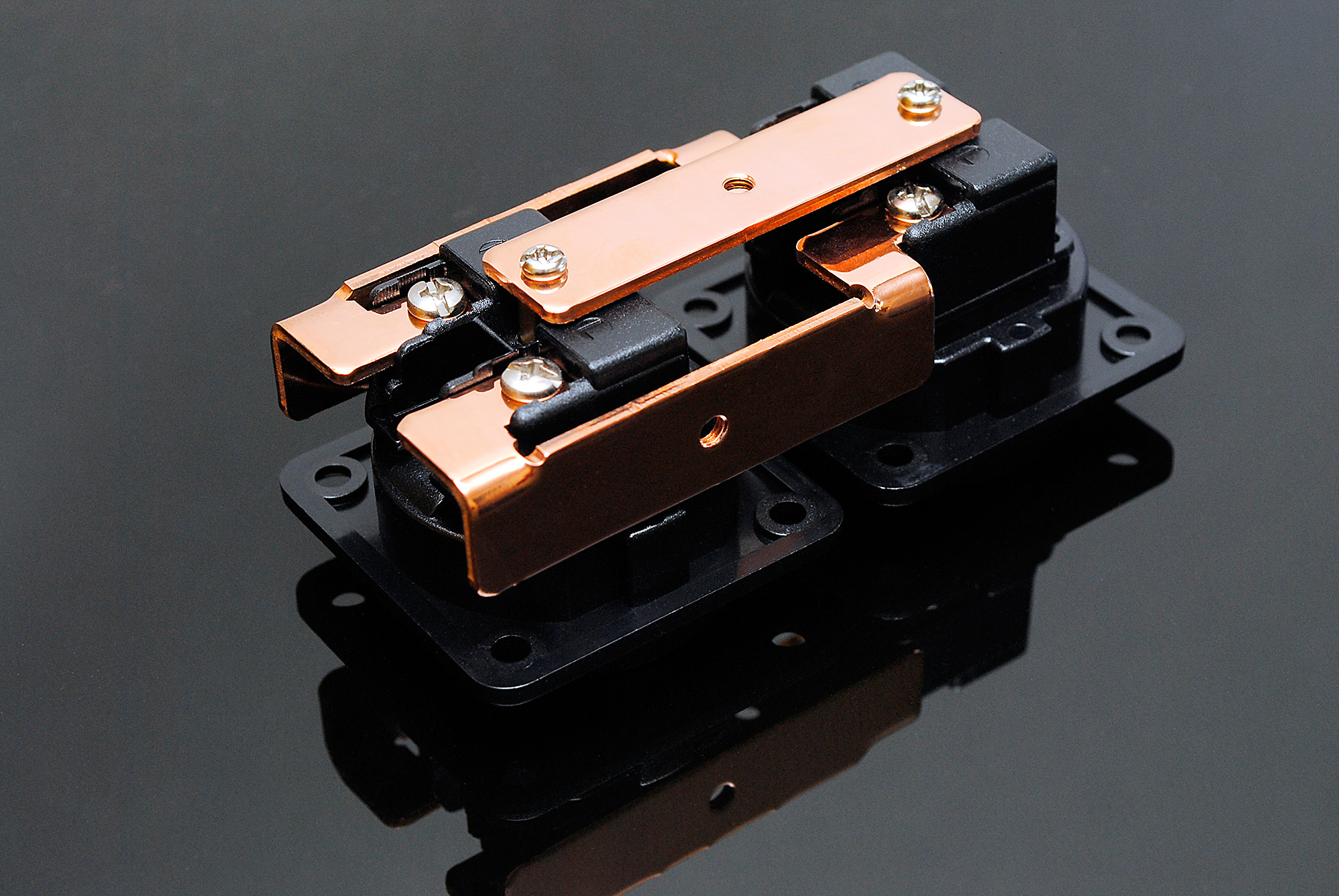

The PF-2 EVO uses an innovative current distribution system, being a proprietary development of the company. It is based on massive power distribution bars of 2nd generation, made of polished, high purity, cathode copper slabs (Cu-ETP). This system distributes the current directly to each pair of output sockets, using crimped and screw-tightened connections and GigaWatt Powerlink inner cabling with a cross-section of 4 QMM. The use of the star wiring topology and the high conductance and massive cross-section of about 30 QMM of each of the bars warrants an equal and stable power distribution regardless of the load on any of the strip’s outputs.

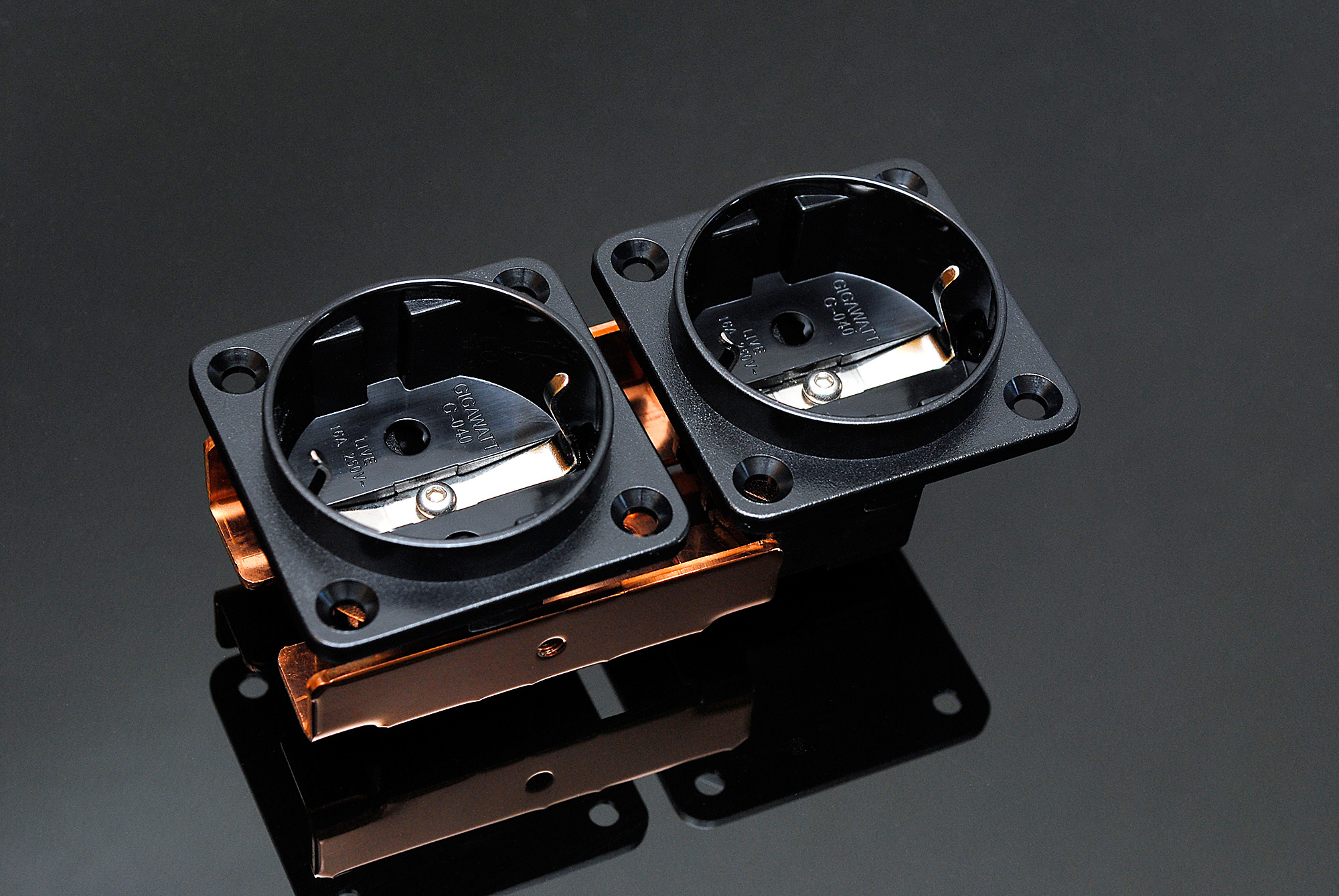

The PF-2 EVO power strip is equipped with six high quality power sockets GigaWatt G-040 Schuko, designed and manufactured by the company. The brass connectors of those sockets were silver plated at the factory, without the usage of intermediary metals, like copper or nickel, which could introduce unfavorable series resistance and voltage loss. The increased area of contact and the thick layer of silver guarantee sure contact with the plug pins. The sockets were additionally subdued to cryogenic modification and a demagnetizing process. In order to effectively protect children, the G-040 sockets were equipped with integrated anti-surge shutters (increased protection against touching, conform with VDE 0620). The PF-2 EVO is also available with outlets of type NEMA 5-20R, used in North America and some Asian countries, and with Australian outlets of type AS/NZS 3112.

All internal elements of the power strip are closed in a double metal chassis. This enclosure is a perfectly tight shield against RFI and EMI noise. The strip is also equipped with a LED indicating proper operation of the device and a circuit indicating wrong polarization of the power line or wrongly connected grounding.

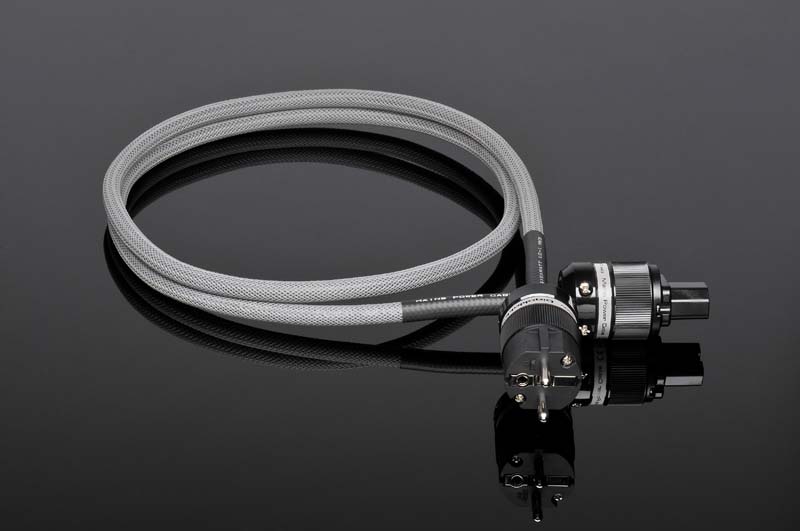

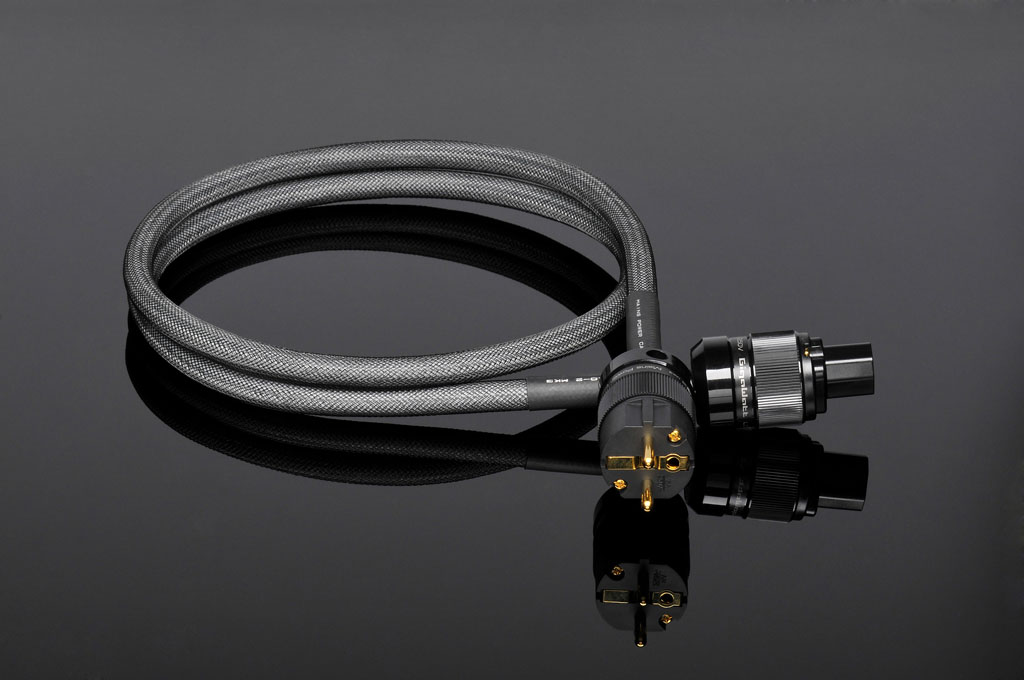

The strip is also equipped with a high quality IEC socket, allowing their user to connect any power cable. The power strip is equipped with the power cord PowerSync with 1.5m length. To fully utilize the maximum potential of the PF-2 EVO we recommend the usage of the LC-2 EVO  or PowerSync ULTRA power cable.

Available socket types: EU (Schuko), US (Nema 5-20R), AU (AS/NZS 3112)
Line voltage: 220-240 VAC / 50-60 Hz or 110-120 VAC / 50-60 Hz
Maximum output power : 3 680 W
Maximum current load: 16 A
Absorbed impulse current: 13 000 A
Dimensions (L x W x H): 420 x 90 x 94 mm
Gross weight: 4,9 kg


전세계에서 가장큰 오디오쇼인 뮌헨오디오쇼에서 많은제조사가 GigaWatt사의 파워컨디셔너를 메인 전원장치로 사용을 해서 부스를 운영하고 있습니다




2017 년 뮌헨하이엔드오디오쇼에서 Gabel부스에서 사용되어진 PC4 Evo + DCB사진입니다..
