Seas사의 60년 제조노하우가 모두 들어간 최상위 Exotic라인입니다
단가의 상승으로 인해 요즘은 거의 사용하지않는 알리코마그넷으로 제작이 되었으며
파피루스 섬유로 제조되어진 페이퍼콘지,특별하게 설계된 고무엣지,특허를 받은 스파이더형태의 댐퍼,나무재질의 페이즈 플러그,94db에 이르는 감도등 이전 스피커에서는 찾아볼수 없는 씨어스사만의 독창적인 제조노하우가 들어가있는 하이엔드 미드우퍼입니다..
음질이 좋은 진공관 앰프와 매칭시 가장 뛰어난 효과를 볼수있는 드라이버입니다
매디사운드 판매가격 $886.7 입니다 |

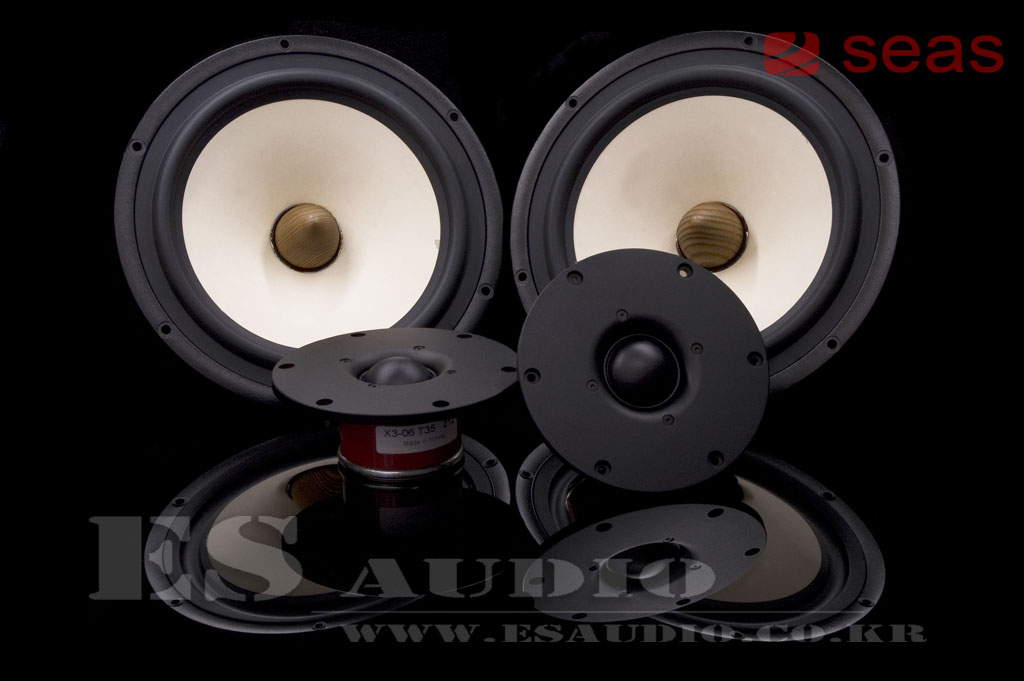

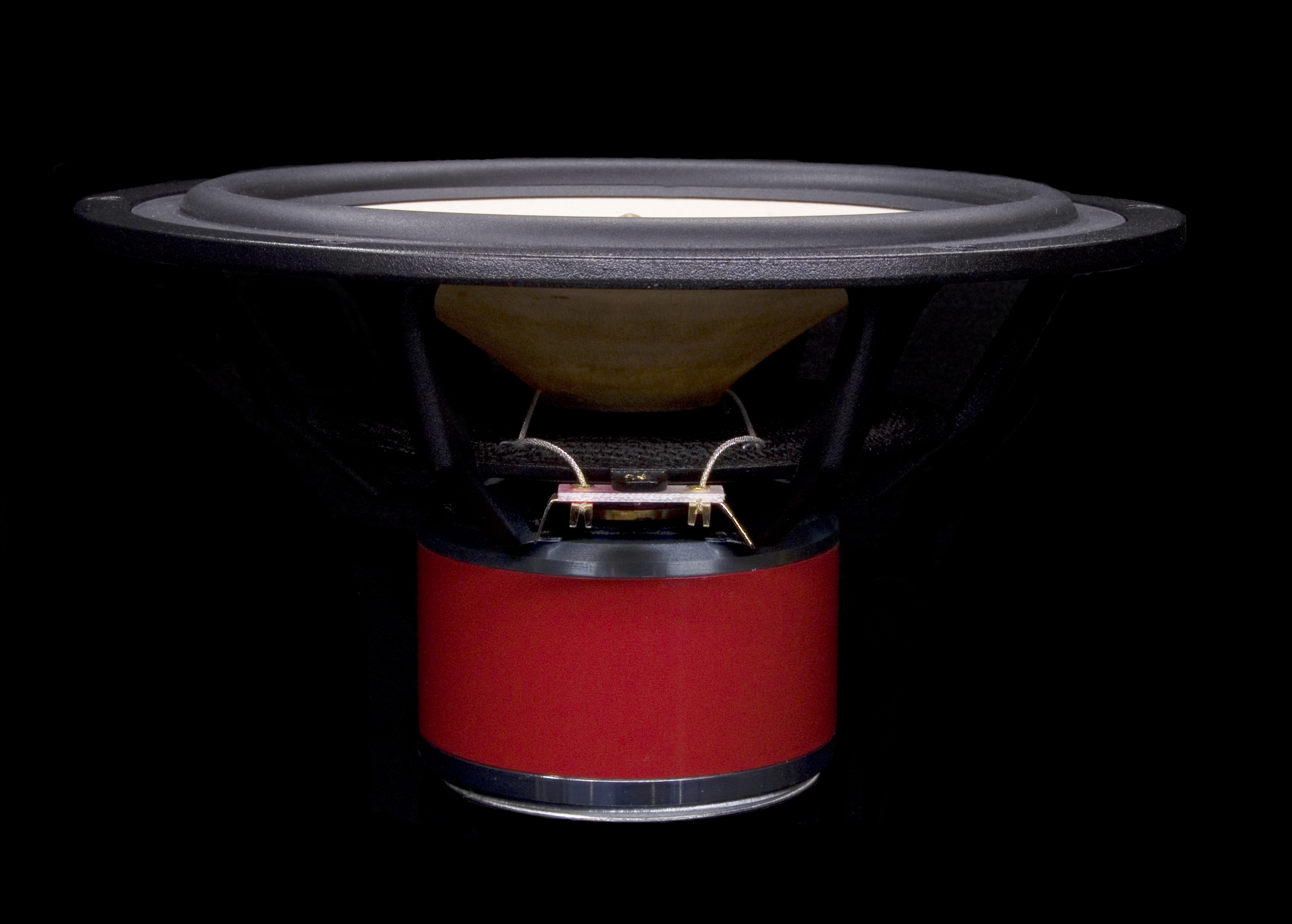

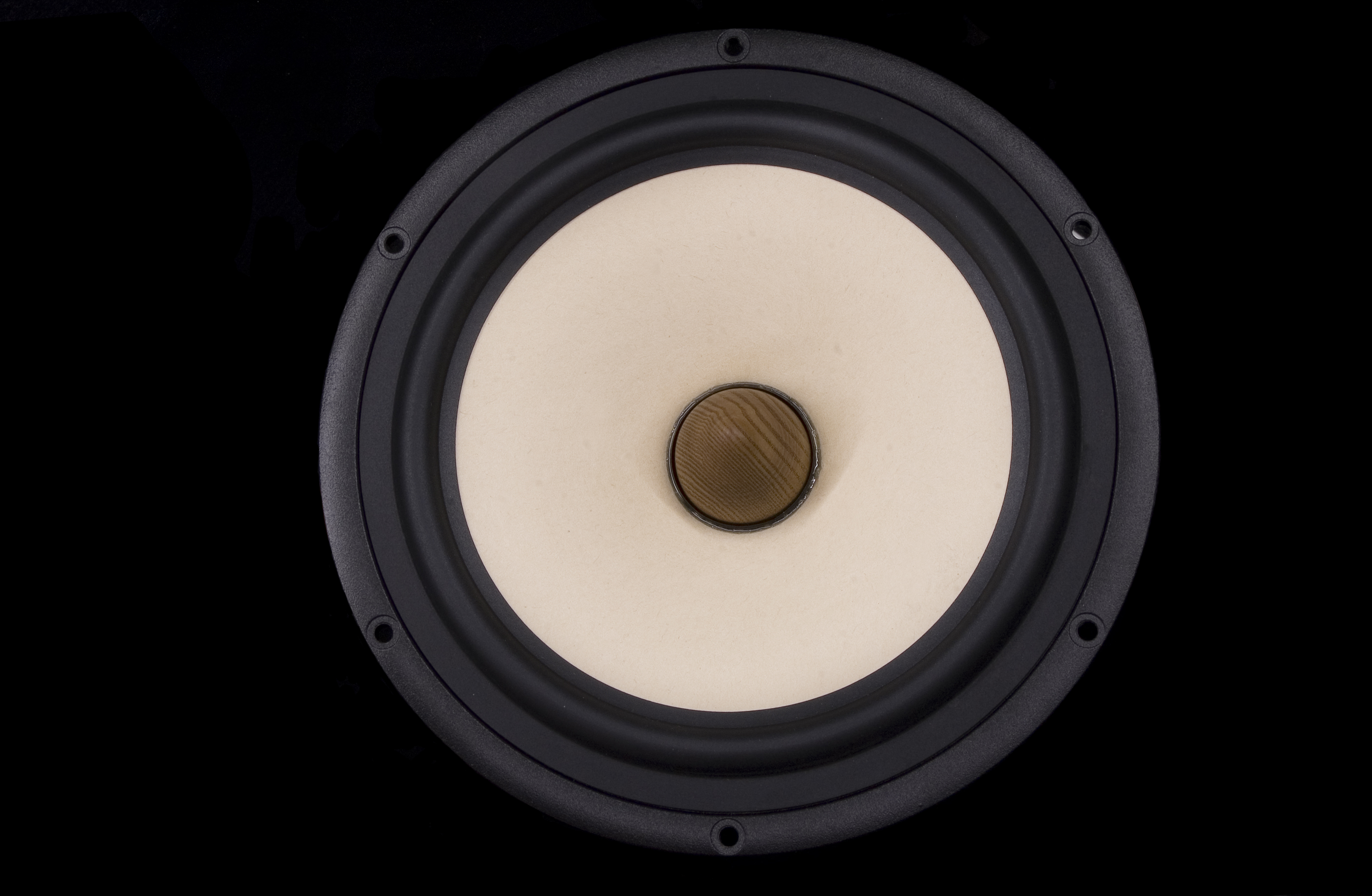

SEAS Exotic W8 X2-08, 8" Woofer - Alnico Magnet
씨어스 엑조틱 W8 8인치 우퍼- 알리코 마그넷
The Exotic W8 is an 8 inch woofer-midrange driver designed for smooth, wide frequency response, high sensitivity and low distortion.
The special paper cone is embedded with papyrus fi bres to optimize stiffness and damping.
A special foam rubber surround reduces mass by 40% compared to conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties. Unlike most plastic foam materials, this material is stable and will offer decades of trouble-free operation.
A new and proprietary spider design dramatically improves the performance of this critical suspension part.
By combining an extremely open weave with a new resin formulation, all noises normally generated by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the refl ections and resonances associated with conventional spider designs.
A high temperature copper voice coil is wound on a rigid, non-conductive glass fiber former.
High quality H2 lead-out wires eliminate noise due to roping and resonances.
The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability.
Massive copper rings above and below the magnet gap lower distortion due to eddy currents and flux modulation. A hand-turned phase plug made from ash offers optimal radiation conditions for the critical mid frequency band.
A stiff and stable injection moulded zinc basket keeps the critical components in perfect alignment. Generous windows both above and below the spider reduce sound refl ection, air fl ow noise and cavity resonances to a minimum.
Download the Seas Exotic Kit Plan. PDF includes:
- Spec sheets Seas Exotic T35 X3-06 and Exotic W8 X2-08
- Kit manual
- Kit crossover diagram
- Kit frequency chart
- Kit enclosure plan
